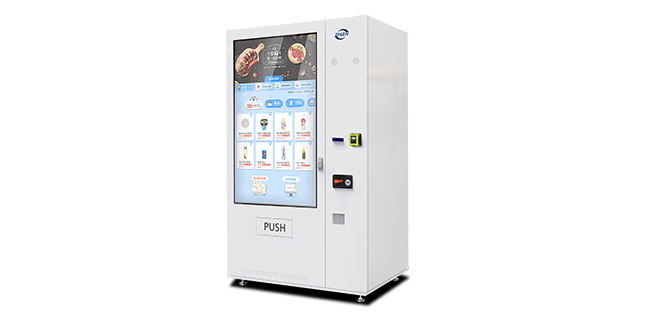

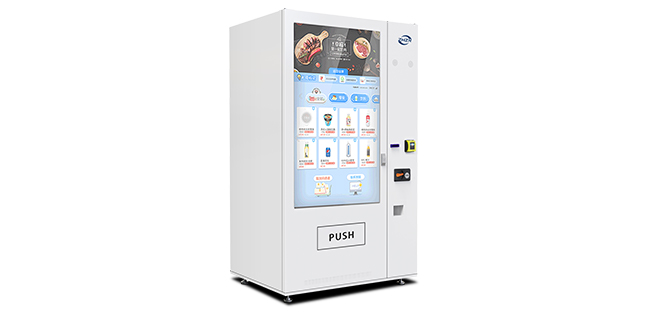

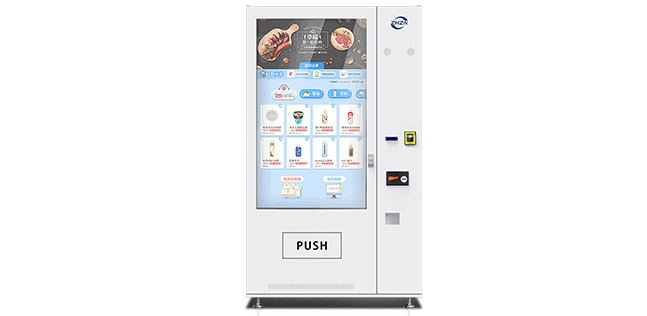

ZH-T5 Large Vertical Big Screen VendingMachine

ZH-T5

21.5-inch touch screen intelligent vending machine. Equipped with 55-inch HD LCD advertising screen.
Product Consultation
  • Functional Features
  • Specification

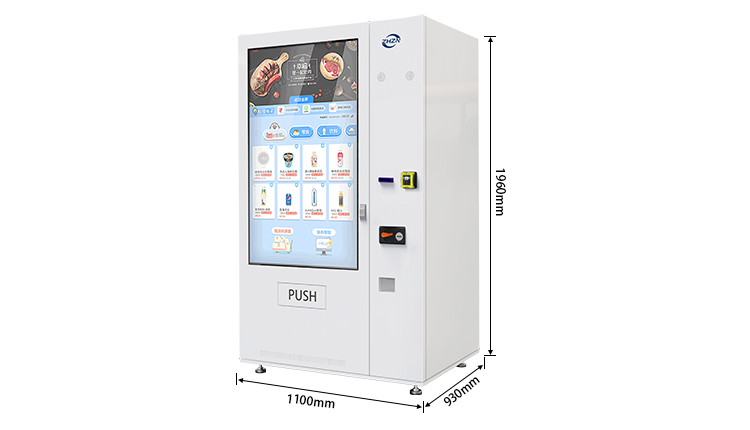

  • External dimensions
    • Description
    Model
    ZH-T5
    Type
    Vending Machine
    Dimension
    1100 * 930 *1960 mm
    Weight
    280 Kg
    Capacity
    270-648 units ( Depend on the size of your goods )
    Lane Type
    Spiral / Conveyor / Pusher
    Lane
    Standard 6 rows * 9 columns , 54 Slots
    Temperature
    Normal
    Color
    White
    Material
    Sheet metal
    Packaging
    Kraft cardboard box+pearl cotton
    Specifications
    Main broad
    Android mainboard/4-core A53 chip , 8G Rom,2G Ram
    Single - Chip
    Support 8 * 10 lane arrangement
    Display
    55 inch , LG/AUO , Resolution:1920 * 1080 , Brightness 350 CD/m²
    Touch Screen
    55 inch capacitance multi, Touch response speed :<15ms
    Network
    Support WiFi / 4G / Wired
    Payment
    Card payment / Cash / Coin / Scan pay ( Customizable )
    Power
    520W(refrigerated)    40W(normal)
    Voltage
    AC110~240V , 50~60Hz , Protect electic shock
    Menu operation
    Capacitor touch screen menu purchase
