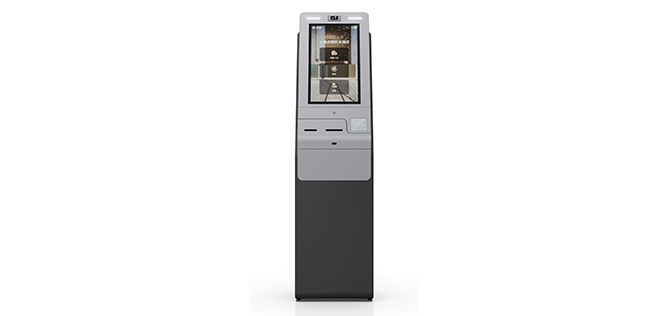

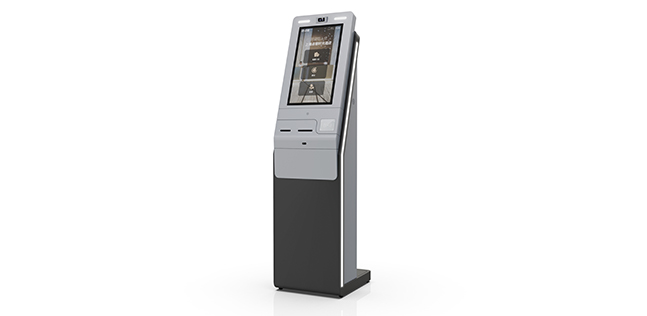

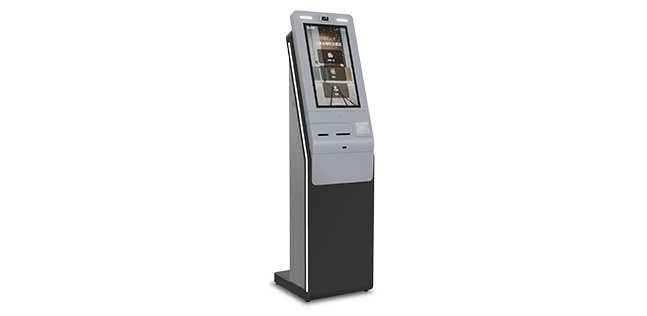

Multi-Purpose Self Service Machine

21.5 inch floor standing self check in payment kiosks with card despener.

功能特点

规格参数

外形尺寸

Description
Model	ZH003
Type	Self Payment Kiosk

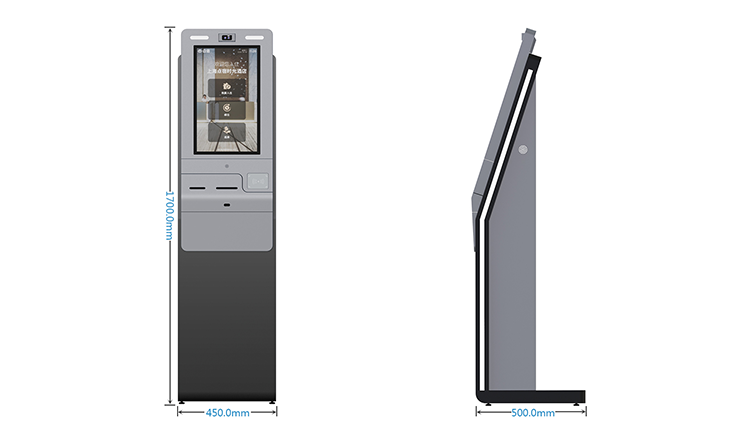

Dimension	450 * 500 * 1700 mm
Color	White or Black ( Customizable )
Material	Sheet metal
Surface treatment	Spraying process
Maintenance	Front door safeguard
Install Type	Floor standing
Trumpet	Loud and clear, with stereo
Cable	Customized cables
Packaging	Kraft cardboard box+pearl cotton
Warranty	1 year
Power	200W
Input Voltage	100-240V

Specifications
General Specifications	Operate System	Windows/Android (optional)
	Display	21.5 inch
	Network	4G/5G/WiFi/Wired (optional)
Host Specifications	Main board	RK3288 / HW-704 (optional)
	CPU	Android 7 / i3-11 generation (optional)
	RAM	2G / 4G (optional)
	ROM	16G / 128G (optional)
Panel Specifications	Screen Size	21.5 inch capacitive touch screen
	Resolution	1920 * 1080
	Touch Point	10 ponit
	Display Interface	VGA , HDMI
Printer	Print Method	Line thermal printing
	Print Width	52~82.5 mm
	Cutting Method	Half cut , All cut
	Resolution	203dpi
Scanner	Scan Method	Inductive scan , command trigger
	Image Sensor	752 pixels(H) * 480 pixels(V)
	Decode Depth	0-10cm
	Resolution	≥4mil/0.1mm@PCS90%
	Interface Support	RS232 , USB
Module (optional)	Camera, ID Card Reader, NFC, Octopus, Pos Machine, Fingerprint, OCR,A4 Printer etc.
